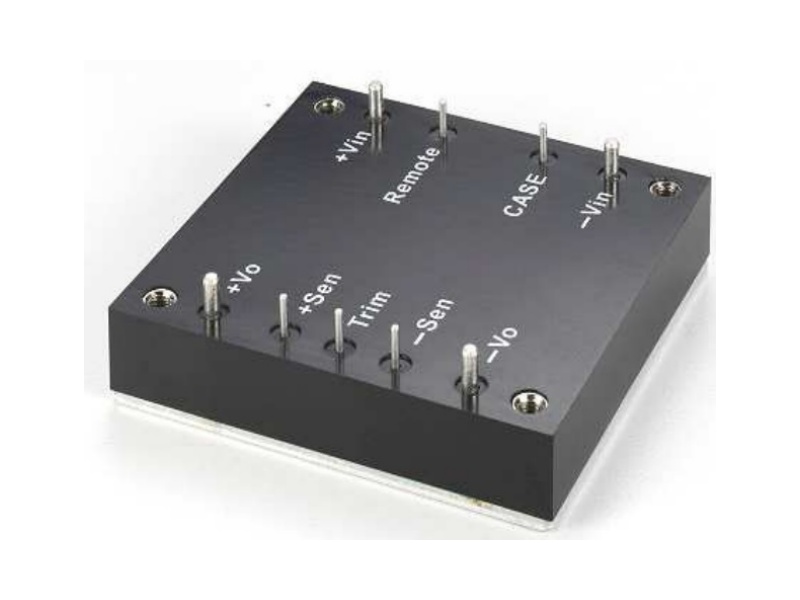

CFDH500-24R3 DC-DC 500瓦半砖电源

数据下载Model Selection Table ModelON/OFFlogic①INPUT VOLTAGE(VDC)OutputFull loadefficiency (%)Min./Typ.Maximumcapacity③load (µF)Minimumcapacitiveload (µF)Nominal value(range value)Maximumvalue ②Voltage (VDC)Current (A)Max./Min. --CFDH500-24S12R3-N N 24(18-36) 401242/091/9312000470CFDH500-24S15R3-N1534/092/9410000470CFDH500-24S24R3-N2421/091/936000470CFDH500-24S28R3-N2818/092/945000470Note:① "P" represents positive logic, "N" represents negative logic;② The input voltage cannot exceed this va...

联系我们

在线询价

邮箱：sales@chewins.net

详细介绍

数据下载

Model Selection Table
	Model	ON/OFF logic①	INPUT VOLTAGE(VDC)		Output		Full load efficiency (%) Min./Typ.	Maximum capacity③ load (µF)	Minimum capacitive load (µF)
			Nominal value (range value)	Maximum value ②	Voltage (VDC)	Current (A) Max./Min.
--	CFDH500-24S12R3-N	N	24 (18-36)	40	12	42/0	91/93	12000	470
	CFDH500-24S15R3-N				15	34/0	92/94	10000	470
	CFDH500-24S24R3-N				24	21/0	91/93	6000	470
	CFDH500-24S28R3-N
					28	18/0	92/94	5000	470
Note: ① "P" represents positive logic, "N" represents negative logic; ② The input voltage cannot exceed this value, otherwise it may cause permanent and irreparable damage; ③ To ensure the stability of the output voltage, a minimum capacitive load must be connected to the output side of the product.
