◆ Input voltage range: 16VDC-50VDC
◆ Output voltage :3.3VDC (2.97 ~ 3.63V adjustable)
◆ Efficiency: Up to 89.6%
◆ Volumetric power density: up to 218W/in3
◆ Weight Power density: up to 3.3W/g
◆ Over voltage, over current, under voltage,
short circuit and over temperature protection
◆ 2250VDC insulation withstand voltage
◆ Supports 8 parallel expansion units

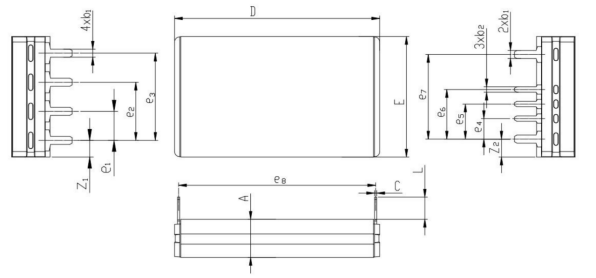

◆ In-line Chip3623 package :38.72mm×22.8mm×7.21mm
◆ Working shell temperature :90℃ (full load)
