◆ Input voltage range: 16VDC-50VDC
◆ Output voltage :5VDC (4 ~ 5.5V adjustable)
◆ Efficiency: Up to 89.6%
◆ Volumetric power density: up to 327W/in3
◆ Weight Power density: up to 7.4W/g
◆ Over voltage, over current, under voltage,
short circuit and over temperature protection
◆ 2250VDC insulation withstand voltage
◆ Supports 8 parallel expansion units

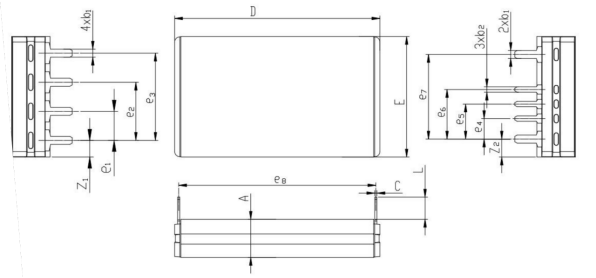

◆ In-line Chip3623 package :38.72mm×22.8mm×7.21mm
◆ Working shell temperature :90℃ (full load)
